产品介绍

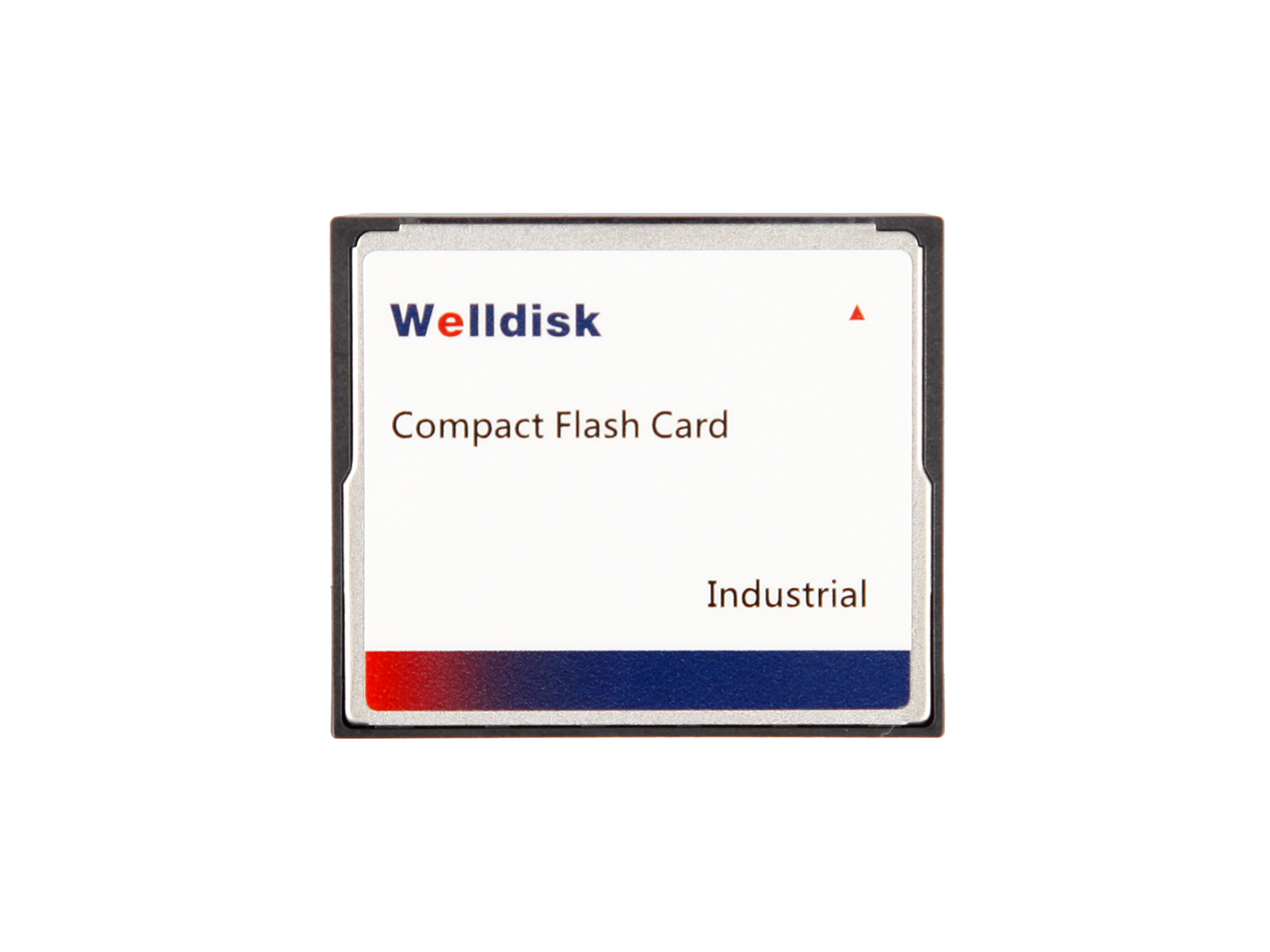

Welldisk Industrial grade Flash cards are designed to provide high durability, reliability, and operations security to meet the requirements of commercial and industrial applications such as: industrial computers, thin clients, casino gaming consoles, lottery machines, Point of Sale (POS) systems, interactive kiosks, and other critical applications. Customers can also purchase Flash memory cards according to specific and customized necessities. Welldisk Flash industrial memory cards also support ECC (Error Correcting Code) function, to automatically detect and correct errors. Support for In System Programming (ISP) allows for the loading of the latest firmware to resolve compatibility issues. Enabled with Static Wear-Leveling technology, which evenly maps data over an entire system to extend the lifespan of the memory card.
规格
|
容量
|
4GB~128GB
|
|
尺寸 (长 x 宽 x 高)
|
36.4x42.8x3.6(mm)
|
|
界面
|
50 pin CF (ATA)
|
|
工作电压
|
3.3V / 5V
|
|
耗电量
|
0.76W
|
|
防震能力
|
1500G/0.5ms
|
|
Operating Humidity
|
0℃ to 55℃ / 5%~95% RH, non-condensing
|
|
Flash Type
|
MLC
|
|
Sequential Read (Max*)
|
160MB/s
|
|
Sequential Write (Max*)
|
25MB/s
|
|
Data Transfer Mode
|
PIO Mode 0~6 Multi-Word DMA Mode 0~4 Ultra DMA Mode 0~7
|
|
Operating temperature (Industrial)
|
-40ºC to +85ºC
|
|
Operating temperature (Commercial)
|
0ºC to +70ºC
|
|
Vibration Resistance
|
20G(10~2000Hz)
|
|
S.M.A.R.T.
|
Supported
|
|
Application
|
Personal Computing Interactive Device Server / Networking Medical Application Military / Aerospace
|
|
Features
|
S.M.A.R.T.
|
订购信息
| W03P02-008GT |
|
50 PIN CF (ATA) |
MLC |
8G |
-40°C to +85°C |
|
| W03P02-004GT |
|
50 PIN CF (ATA) |
MLC |
4G |
-40°C to +85°C |
|
| W03P02-008GM |
|
50 PIN CF (ATA) |
MLC |
8G |
0°C to +70°C |
|
| W03P02-004GM |
|
50 PIN CF (ATA) |
MLC |
4G |
0°C to +70°C |
|
Data Sheet
|
| W03P02-XXXXX |
|
2017-06-06 09:50:29 |
 |
